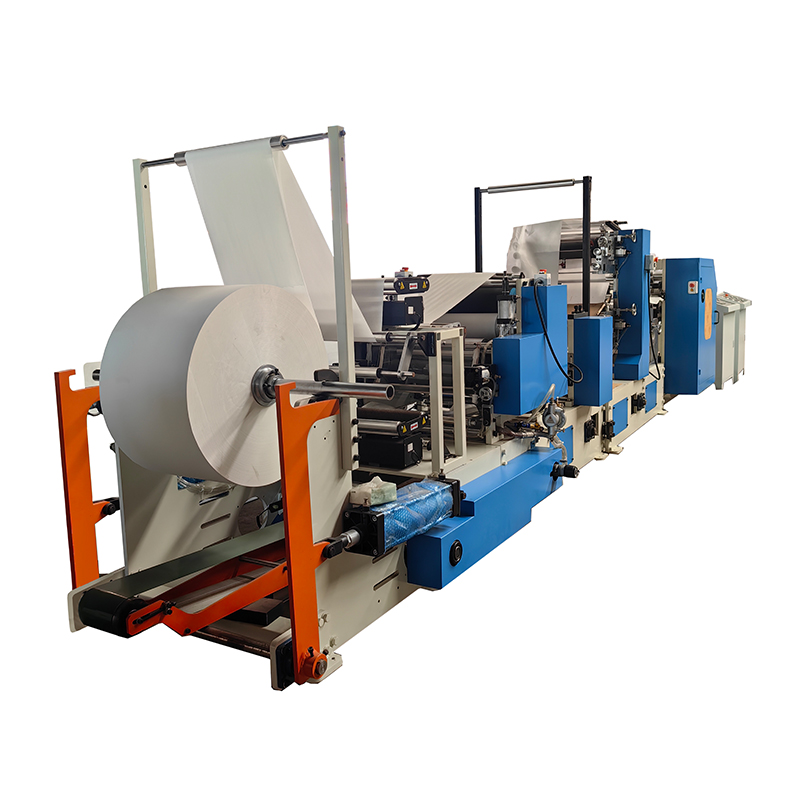

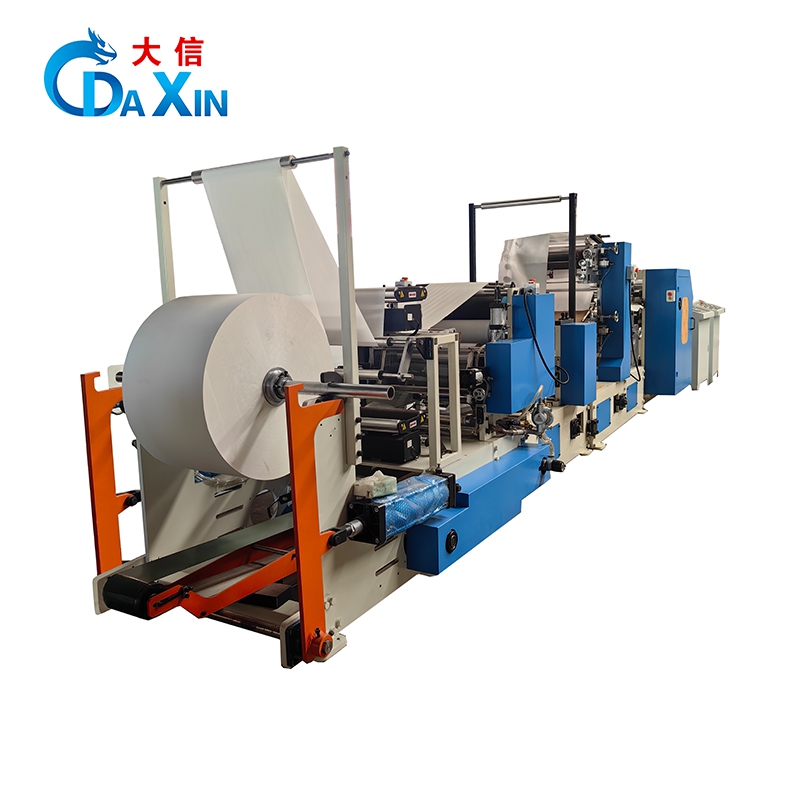

Tech. requirement
1. Suitable jumbo roll fabric：
1.1 Jumbo roll size：Dia.≤1600mm，（Jumbo roll dia.*jumbo width：φ1600*800）mm）；
1.2 Jumbo roll material：25-50gm single ply non-woven fabric （requires good breathability)
1.3 Jumbo roll fabric core dia.：76.2mm；
1.4. Finished product size：100*200MM+-2（4folds point connecting, v fold）
2. Delivery unit：
2.1. Two plies winding stand，Flat belt delivery，Cylinder control；
2.2 Continuously variable gearbox，capably controlling tension adjustment
2.3 Cylinder jumbo roll loading device
2.4 Left and right manual adjustment
3. Embossing unit：
3.1 Two group steel rollers embossing wool rollers (We produce embossing pattern according to the buyer provided);
3.2 Cylinder pressing control
3.3 Embossing roller heating pipe
3.4 Fabric oiling and dust removal device (using white mineral oil)
3.5 Sensor detection, fabric cutting function

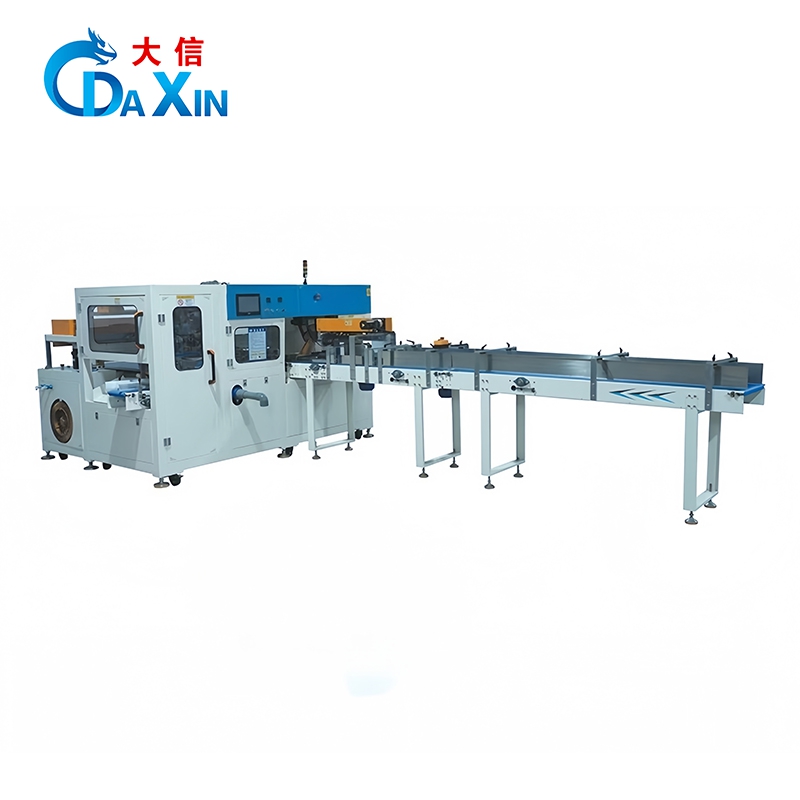

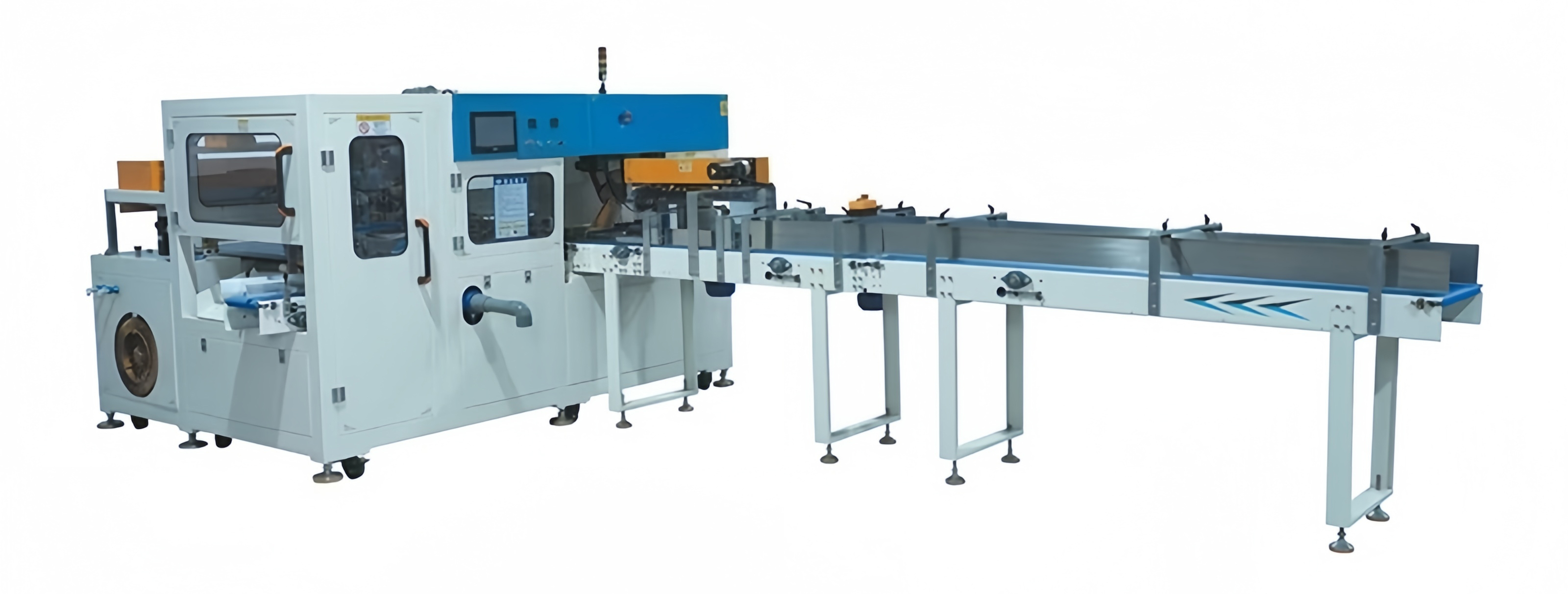

5 Main Advantages and Features of the Machine

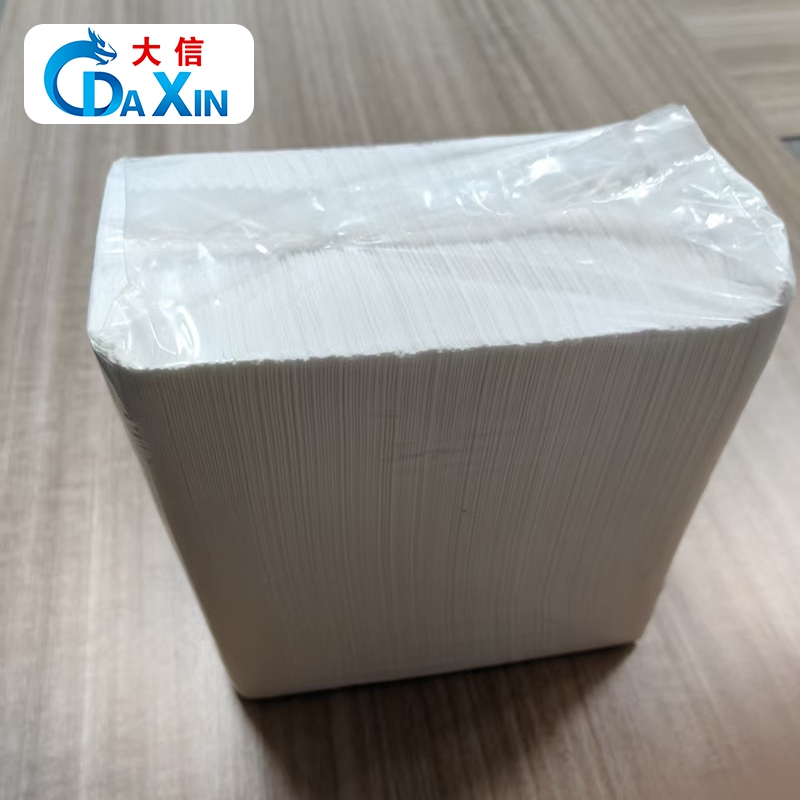

Multifunctional Adaptability: Can package 2~12 folds of napkins and paper towels, with strong compatibility.
Packaging Material Cost Savings: Compared with market models, it achieves 20%~40% cost savings on packaging materials, featuring outstanding cost-effectiveness.
High-Speed and Stable Operation: Long-term stable operation at 50~60 packs per minute, with an acceptance standard of 2-hour continuous operation at 50~55 packs per minute without faults.
Core Patent Support: Exclusive patent for on-line side dotted-line/racetrack-shaped easy-tear openings, solving the promotion problem of fully sealed packages.
Intelligent and High-Precision Control: Equipped with PLC + servo drive + touch screen operation, bus control + electronic cam synchronization, and multi-turn absolute value servo motors to ensure precise operation.
Parameter Specific Specifications
1 Finished Product Length 110~230mm
2 Finished Product Width Regular 130~200mm
3 Finished Product Height 70~80mm
4 Production Speed 50~60 packs per minute (stable operation)
5 Control System PLC program control, servo drive, 10-inch touch screen operation

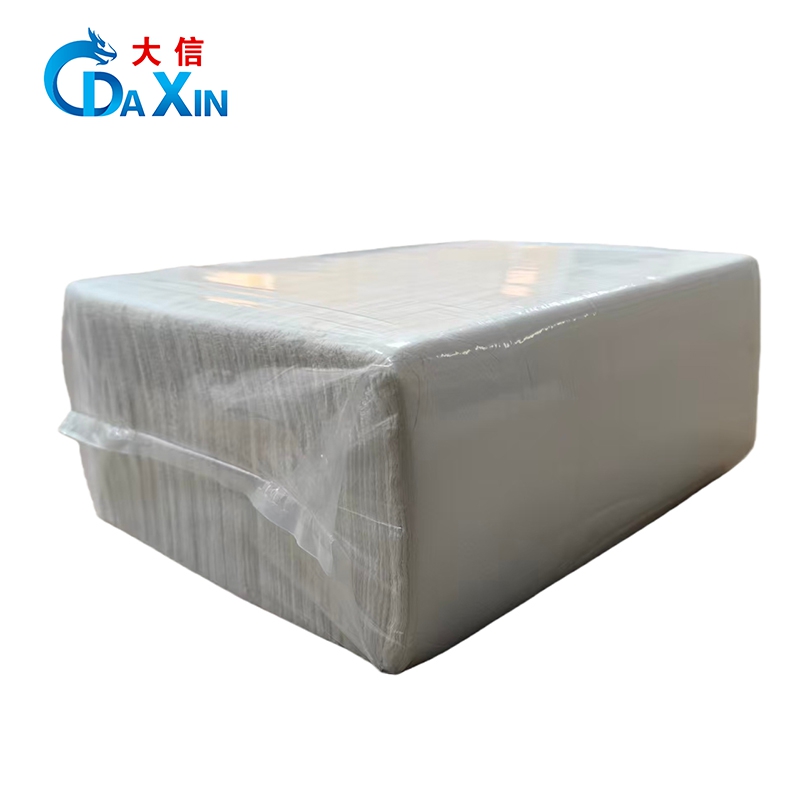

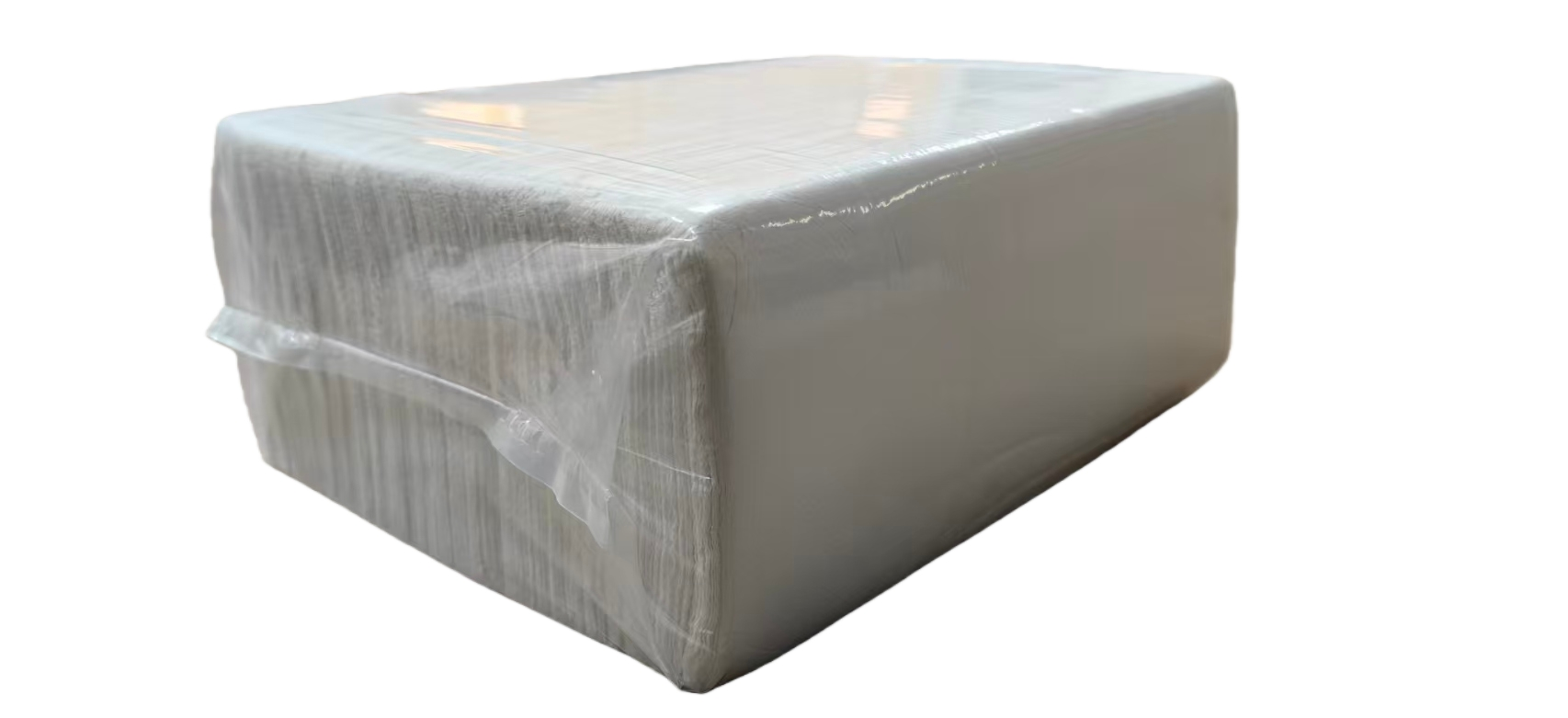

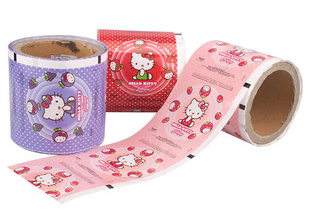

6 Packaging Method Organ-type cylindrical roll film, on-line automatic bag-making continuous packaging (supports printed color code/no printed bag length mode)
7 Required Air Pressure Above 0.5Mpa (to be prepared by the buyer)
8 Power Supply and Total Power 380V/50Hz, approximately 12KW (actual power consumption is lower)
9 Equipment Dimensions Length 4500mm × Width 900mm × Height 1500mm
10 Equipment Weight Approximately 1.5 tons
