DX18 Tissue Paper Automatic Case Packaging Machine

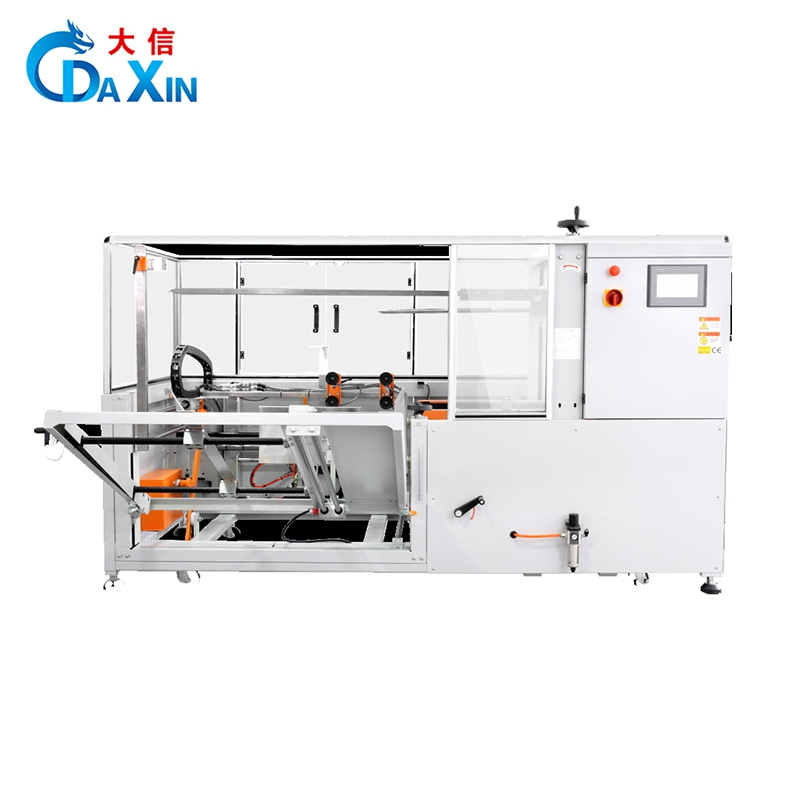

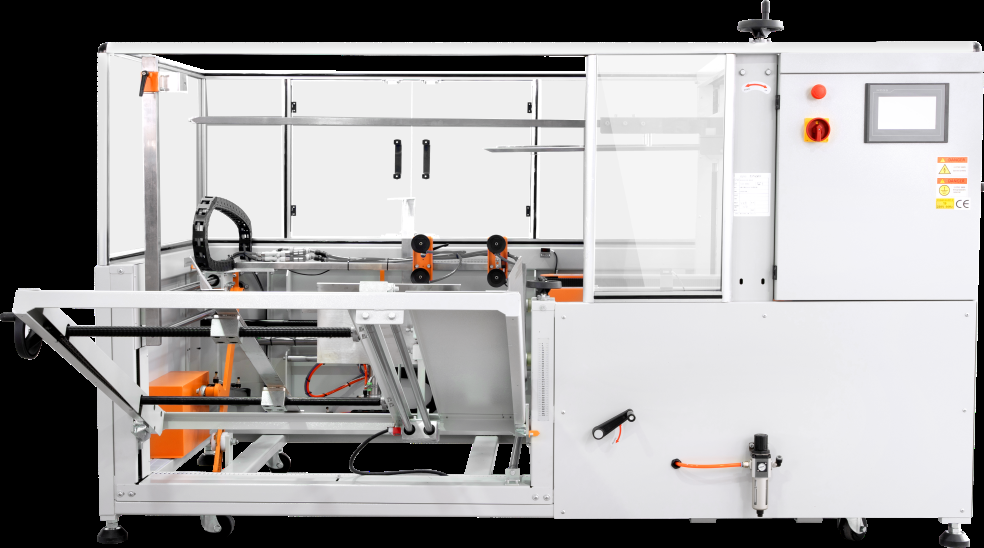

1. Automatic case opening machine
1. Product Introduction: The automatic case opener is a machine specifically developed for mass production lines. With a vertical opening speed of up to 18 cases per minute, it simultaneously sucks in and shapes the cases, folding the bottoms without pause, saving time and enhancing efficiency. It truly enables businesses to achieve cost reduction and efficiency improvement, offering great value for money. This type of case opener has been widely used in various industries such as food, medicine, beverages, tobacco, daily chemicals, and electronics.
2. Product parameters:
Equipment: Model DX18 | Parameter Parameters |
Unboxing speed | 10 boxes/minute |
Case range | Length: 200-460mm, Width: 150-400mm, Height: 100-400mm (L200 requires customization as a non-standard item, and the minimum cannot exist simultaneously) |
Single/3-phase, voltage, frequency | 220V 50/60Hz 1 Phase |
power | 240W |
Tape size | 48/60/75mm (choose one to use) |
Temporary storage capacity of cardboard boxes | 80-100pcs (1000mm)
|
Air consumption | 450NL/min |
Necessary air pressure | 6kg/cm³
|
countertop height | 620-670mm |
Machine dimensions | Length: 2450mm, Width: 2150mm, Height: 1450mm |
machine weight | 550Kg |
Automatic Case packaging machine
1. Product Introduction:
h-speed flexible parallel robot is used for grasping operations, ensuring that products do not fall during high-speed grasping and handling. It is widely applied in the automatic identification, sorting, handling, and packing of soft-bagged and boxed products such as fast-moving food and meat products.
2. Product Parameters:
Equipment Model | Parameter |
Applicable product si size | L（10-400）mm*W（10-280）*H（5-100）mm |
Applicable case size |
Length: 270-460mm, Width: 250-400mm, Height: 150-400mm (The minimum cannot exist simultaneously) |
Packing speed | Maximum 20 times/minute |
Power | 7W
|
Rated load | 20kg/30kg (including gripper) |
Main material | Main frame: Q235 painted/SUS304 |
Necessary air pressure |
7kg/cm³ |
Countertop height | 620-670mm
|

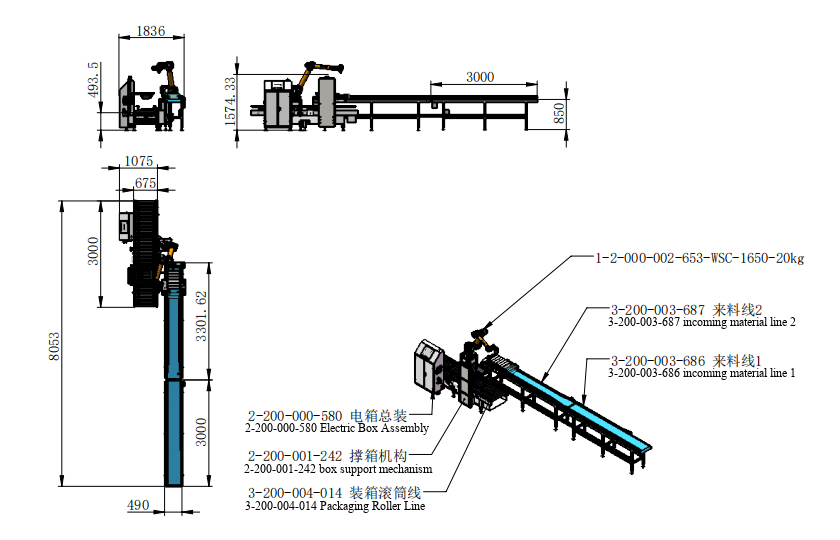

Machine dimensions |
Length: 8053mm, Width: 1836mm, Incoming material platform height: 850mm (±50) Box platform height: 495mm (±50) |
Machine weight |
1000Kg |
3. Automatic folding and sealing machine (D50)
1. Product Introduction
The automatic folding and sealing machine automatically folds the lid and applies adhesive tape on both the top and bottom, eliminating the need for manual labor. It employs instant adhesive tape for case sealing, achieving a flat and aesthetically pleasing sealing effect, with a secure seal. It can operate standalone or be integrated into an automated packaging line. It is widely used in industries such as food, medicine, beverages, tobacco, daily chemicals, automotive, cables, electronics, and more.
2. Product configuration:
Equipment Model | Parameter |
Conveyor belt speed | 18m/min |
Case range | Length: 200-600mm, Width: 150-500mm, Height: 150-500mm |
Single/3-phase, voltage, frequency | 110/220V 50/60Hz 1Phase
|
Power (or Wattage) | 400W
|
Tape size | 48/60/75mm (choose one to use) |
Air consumption | 50NL/min
|
Necessary air pressure | 0.6Mpa |
countertop height | 600+150mm
|
Machine dimensions | Length: 1770mm, Width: 850mm, Height: 1520mm |
Machine weight | 250kg |

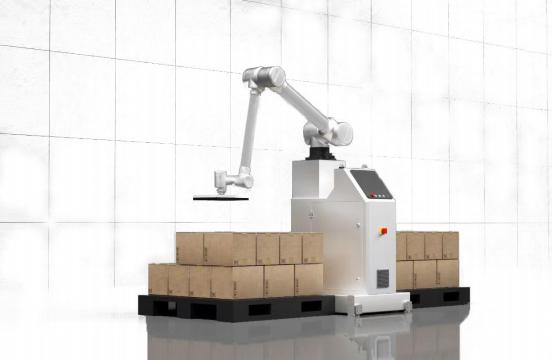

2.码垛机（Cooperative robot）
1. Product Introduction:
The world has entered the era of Industry 4.0 smart factories. As the world's largest market for industrial robot applications, China has witnessed rapid development in the palletizing robot industry. The effective integration and interaction among robots, humans, and the working environment have become a future trend and will greatly boost the development of China's manufacturing industry.
2. Product Features
| Easy to operation g, simple and efficient, allows easy use of robots without requiring proficiency in programming languages. Half an hour to master programming methods, and one hour to complete simple programming. |
| Safety and stability Industrial-grade force control sensors, featuring high reliability and safety; supporting level 10 collision detection and sensor safety detection; Safety function will not be lost in the event of a single failure. |
Visual programming is simple and efficient, and ordinary employees can easily manipulate robots without having to master the programming language.manipulate robots without having to master the programming language.The programming mode can be learned in half an hour and simple programming can be completed in 1 hour. | Industrial grade force-sensor with high reliability and safety; Support 10-level collision detection and sensor safety detection; without loss of safety function in case of single fault. | ||
| Flexible deployment Deploying new tasks on the workstation is simple, quick, and efficient.Integrated design, light and flexible, small footprint area; Workstation deployment of new task setting is simple, quick and efficient. |
| Wide Applications It is widely applied in various industry fields such as food, medicine, 3C, daily chemical, printing, etc. Widely used in food, pharmaceutics, 3C, daily chemistry, e-commerce and other industries. Widely used in food, pharmaceutics, 3C, daily chemistry, e-commerce and other industries. |
Product Parameters
Model | DX 16S | ||||
Loading (or Burden) | 16kg 16kg | 16kg 16kg | |||
Working radius | 1900mm
| 1900mm
| |||
Horizontal distance (pallet specification) | Horizontal coverage radius: 1900mm Maximum allowable application size for pallets: 1300*1300 | ||||
Vertical distance | Fixed HI=2100mm | Lifting type H2=2700mm | |||
Palletizing speed | 10 times/min | ||||
Payload | 16kg | ||||
Operating radius | 1900mm | ||||
Maximum arm span | 1900mm | ||||
Rated voltage | Single-phase 220v | ||||
Maximum working speed | 1.2m/s | ||||
Range of joint movement | J1 | ±360 ° | |||
Material | Aluminum alloy, carbon fiber | ||||
Palletizing workstation | |||||
Maximum palletizing height* | The maximum stackable height for lifting and lowering is 2700mm (including the tray); typically up to 2100mm (including the tray) | ||||
Maximum pallet size* | 1300mm×1300mm | ||||
Stackable box size* | L（260-500）mm*W（200-450）mm*H（150-400）mm | ||||
Maximum allowable loading | 16kg | ||||
Fastest speed | Palletizing up to 8 boxes per minute | ||||
Working radius | Maximum working radius: 1900mm | ||||
Safety function | Optional: safety light curtain, safety fence, safety sensing carpet | ||||
Composition of palletizing workstation | |||||
Expansion configuration solution for palletizing workstation
Further ensure the safety of the palletizing workstation.
Feeding assembly
1. Product Parameters
Name: Model | Parameters Parameter Parameters |
Discharge speed | 40pcs/min |
Capture platform height | 1300mm（±50） |
Size of disc silo | Φ700mm |
Direct vibration length | 300mm 300mm |
Power (or "power output") | 600W |
Air consumption | 50NL/min |
Necessary air pressure | 0.6Mpa |
Machine size | Length: 1770mm, Width: 850mm, Height: 1520mm |
Machine weight | 150kg 150kg |
