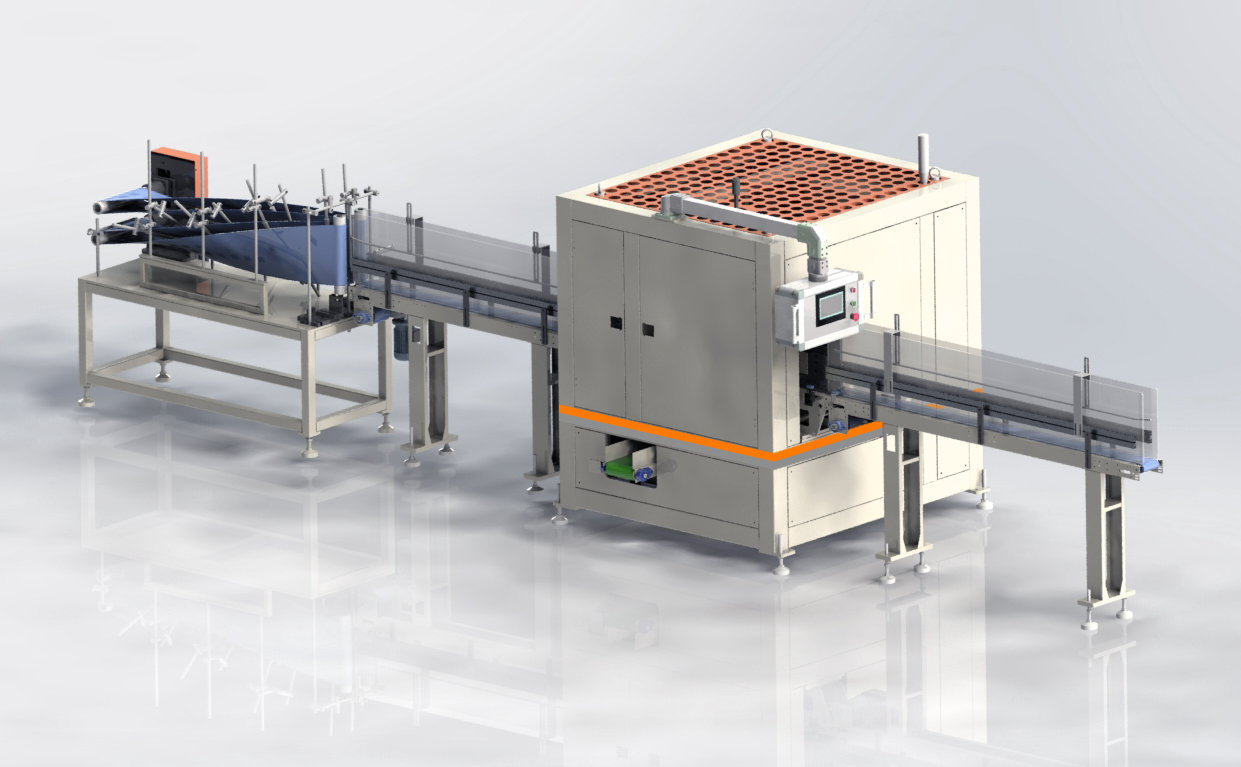

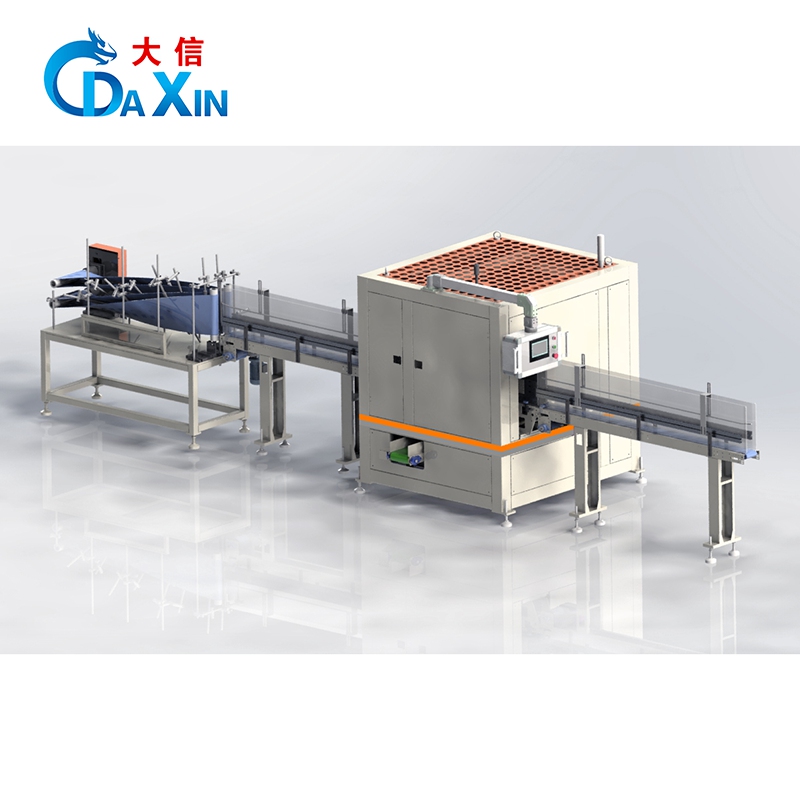

D300-CSZ C/V/M/N 4-6 Fold Hand Towel Paper Single-channel Log Saw
1. Equipment Introduction
The D300-CSZ single-channel cutting machine is high-speed, high-efficiency, and high-stability automated cutting device designed for post-processing products such as hand wipes, bottom-feed v fold soft tissue paper, bottom-feed cream paper, and bottom-feed cotton soft wipes. This device cuts the incoming material in a vertical side-cutting manner and turns through a twisting conveyor belt for packaging and production by the back-end packaging machine. It effectively solves the pain points of poor cutting effect and low efficiency in other methods, making it an indispensable good helper for modern paper processing production lines.
STD300 Soft Tissue paper double lanes log saw
STD300 Cutting machine | ||
CUTTING PART | Paper cutting range； L=90-250mm、Width=80-110mm、H=25-120mm 1. Production speed. 300cut/min.（ The cutting speed varies according to the cutting length, and is within 120-140 ） 2. Control system； PLC Program control、servo drive、touch screen 3. Feeding mode； servo drive, timing belt driving positioning 4. Cutting mode； Continuous 360° rotation. 5. Paper head and tail trimming system， PLC controlled and touch screen operated. Cutting length: 15mm-20mm. 6. Paper cutting accuracy: Cutting error <1mm. 7. Blade sharpening system: Automatic sharpening, touch screen parameter setting, and dust blower (to eliminate blade blackening). 8. Total Power: 15kW 9. Main Unit Dimensions: Length = 2050mm x Width = 1850mm x Height = 2000mm (excluding feed channel length) 14. Weight:2 tons
| CORE PART/PC MACHINE |
Cutting machine | ||
CUTTING PART | Paper cutting range； L=90-250mm、Width=80-110mm、H=25-120mm 1. Production speed. 300cut/min.（ The cutting speed varies according to the cutting length, and is within 120-140 ） 2. Control system； PLC Program control、servo drive、touch screen 3. Feeding mode； servo drive, timing belt driving positioning 4. Cutting mode； Continuous 360° rotation. 5. Paper head and tail trimming system， PLC controlled and touch screen operated. Cutting length: 15mm-20mm. 6. Paper cutting accuracy: Cutting error <1mm. 7. Blade sharpening system: Automatic sharpening, touch screen parameter setting, and dust blower (to eliminate blade blackening). 8. Total Power: 15kW 9. Main Unit Dimensions: Length = 2050mm x Width = 1850mm x Height = 2000mm (excluding feed channel length) 14. Weight:2 tons Remarks: We also have faster speed model. | CORE PART/PC MACHINE |
D800-1200 High Speed Jumbo Roll Rewinding Slitter
Product Introduction
1. High-efficiency power system, equipped with embedded control board and common DC bus energy-saving system, imported MAXI slitting knife table + Taiwan JIAYAN curved paper roll mechanism, servo drive system + 1200m/min dynamic balance roller, high speed and stability.
2. Intelligent rewinding system, plate-type one-piece machine head with arc-shaped rubber loosening device, air shaft + precision pressure valve dual control rewinding pressure, pressure self-adjustment technology to ensure the consistency of the tightness of the jumbo roll inside and outside.
3. Automated production module, infrared paper breaking and automatic stop of the whole machine + full-process automatic fast roll change system, integrated paper cutting air blowing /tube dropping unmanned operation unit.
4. Strengthened structural design, hydraulic lifting and paper dropping device (load-bearing +80%), precise and reliable control, 200mm steel plate frame + air spring calendering system + cast iron roll surface cleaning + 11kW powerful edge suction fan.
5. Special adaptability, pneumatic belt paper feeding system (compatible with 3 tons/Φ2m jumbo rolls) chrome steel cutter + oil cloth lubrication to extend the life of the knife group.
6. Safe and convenient control system, CE standard guardrail + emergency stop linkage system, 7-inch touch screen + early warning prompt + partition motor control is safer, paper feeder fine-tuning function + modular tension adjustment design.

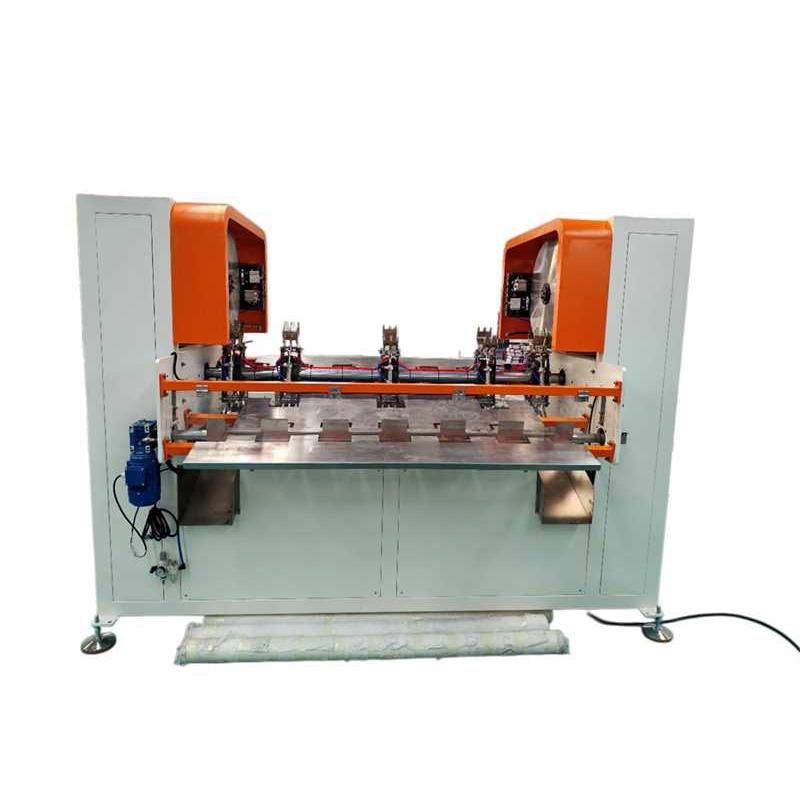

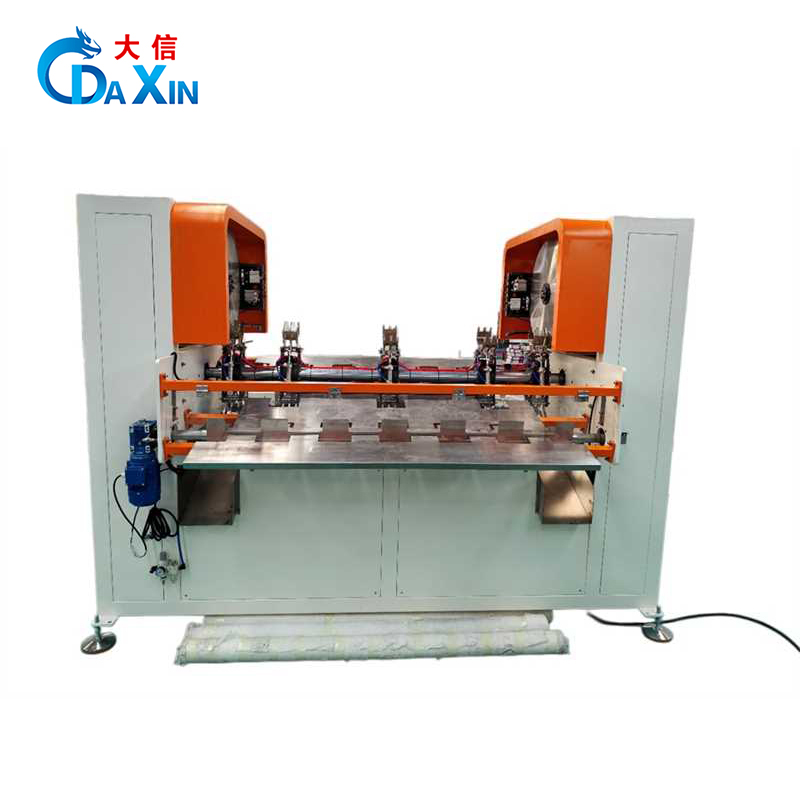

PAPER TRIMMING JXB2530
Trimming Machine Main performance parameters and features
Device Model | JXB2530 | remark |
Cutting specifications | Diameter: 60-130mm; Length: 2480-2580mm | three-dimensional dimensions of the semi-finished product, its Its specifications can be customized |
design speed | 15 items/minute | |
production speed | 10-15 items/minute | |
cutting accuracy | Cutting error ±2mm | |
Trimming length | 10-50mm 10-50mm | Log 2530mm length |
control system | PLC program control, motor drive, and operation via touch screen interface make, do, create, compose, write, etc. | |
Feeding method | The conveyor belt receives the material and transports it to the platform for storage, while the cylinder lifts and lowers the material for feeding Host. | |
cutting method | Continuous cutting with 360° rotational movement | |
Edge trimming tool position | Adjust manually to the appropriate position according to customer needs. | The default spacing between two circular knives when the machine is turned on 2530mm |
Knife sharpening system | Automatic knife sharpening, with touch screen for setting knife sharpening frequency and feed frequency parameters Number. | |
Equipment main unit size | Length = 3888mm × Width = 1800mm × Height = 2200mm (excluding Feeding conveyor belt) | |
total power | 10.5KW
| |
Power type | 380V/50Hz
| |
Equipment weight | ≤2 tons | |
Device color | Milky white, paint spraying process | |
Paper cutter specifications | ￠610×4.76mm 、D2/1.2379
| |
Grinding wheel specifications | ￠20*D100
| |
Compressed air consumption | ＜1.2m³/H
|
