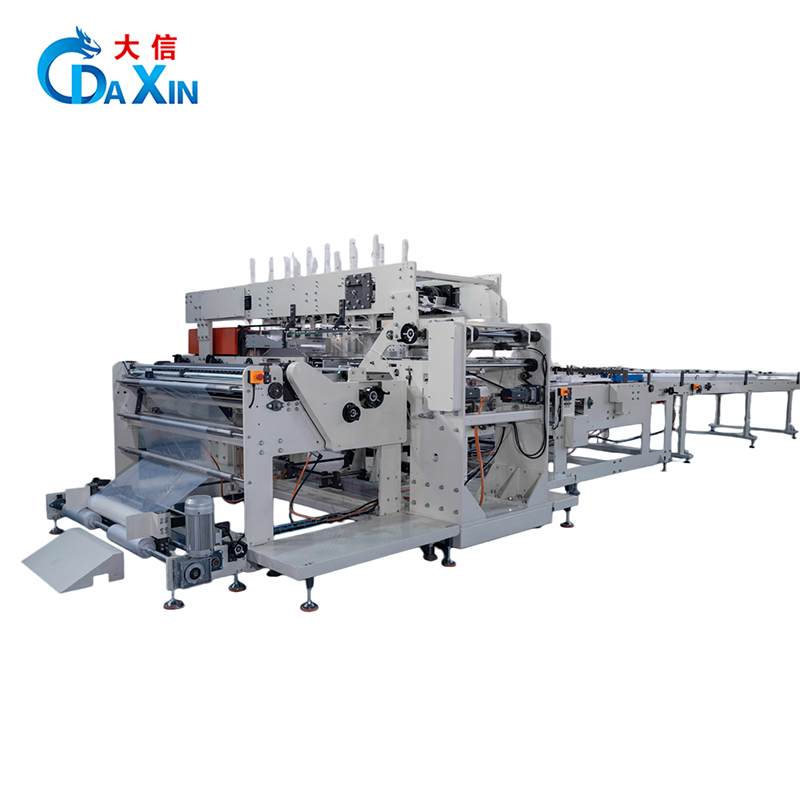

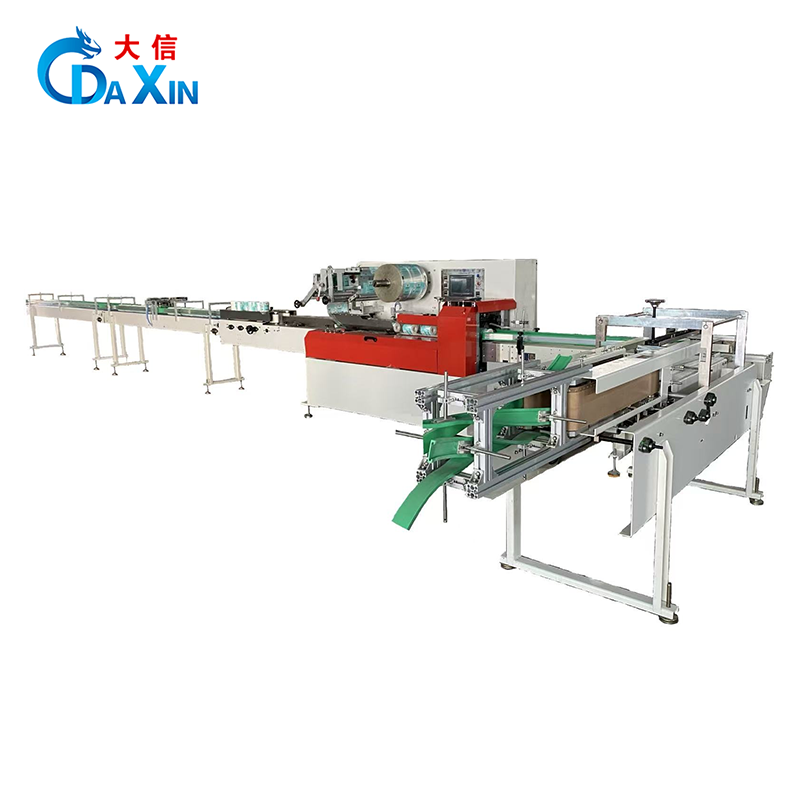

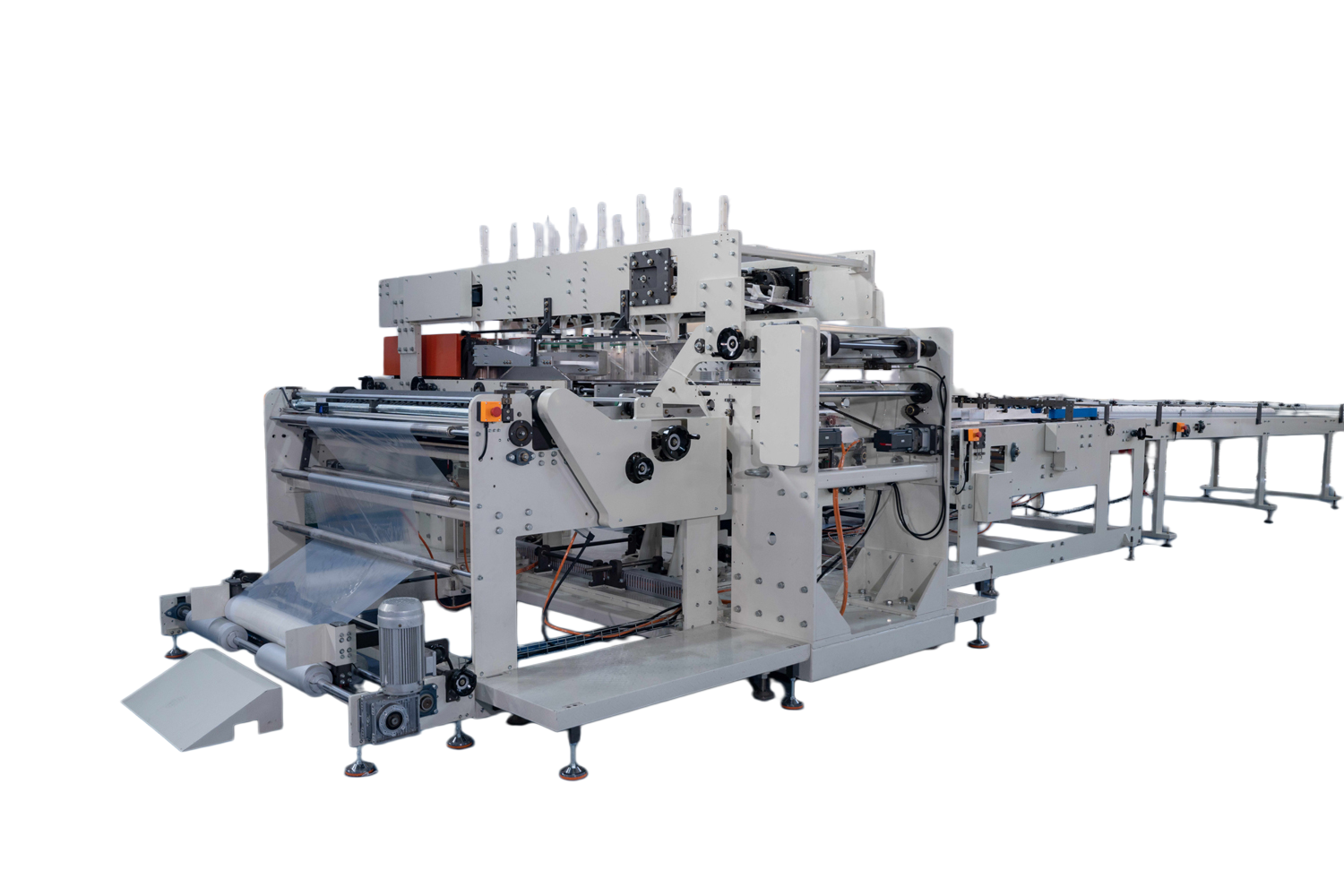

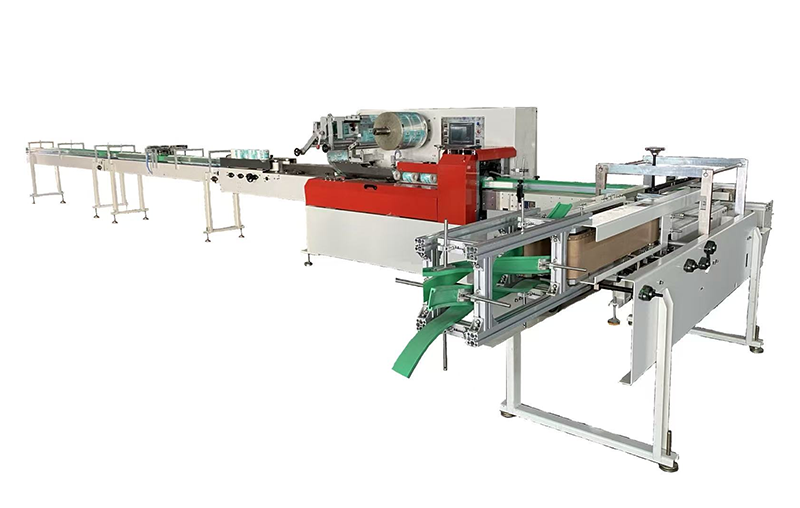

DX-220 Series 1-4 Rolls Core/coreless Roll toilet roll/kitchen roll wrapping machine.
Tech. parameter and standard configuration：
Item | Unit | Size | |

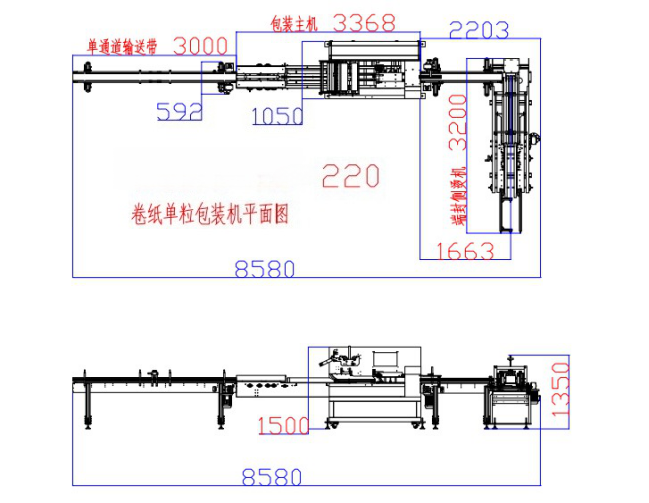

Machine size | M | 8.58 | |
Host outlook size X1 | Length | MM | 3368 |
Width | MM | 1050 | |
Height | MM | 1500 | |
Machine weight | KGS | 1680 | |
Stable | Roll/min. | Max. speed120/MIN. | |
Package range | Length | MM | 90-285 |
Dia. | MM | 50-130 | |
Package material detail data | Packaging film material: SPP double heat-seal film; Packaging film thickness: 0.018mm~0.025mm; Max. outer dia.of packaging film: ￠450mm; Diameter of packaging roll paper core: 70mm-75mm. Sealing margin no less than 20mm, sealing method is wheel clamping sealing by food pillow packaging machine. | ||
Full loading power of entire machine about 8.2Kw | |||
2 Toilet roll paper/kitchen roll paper bunding packaging machine

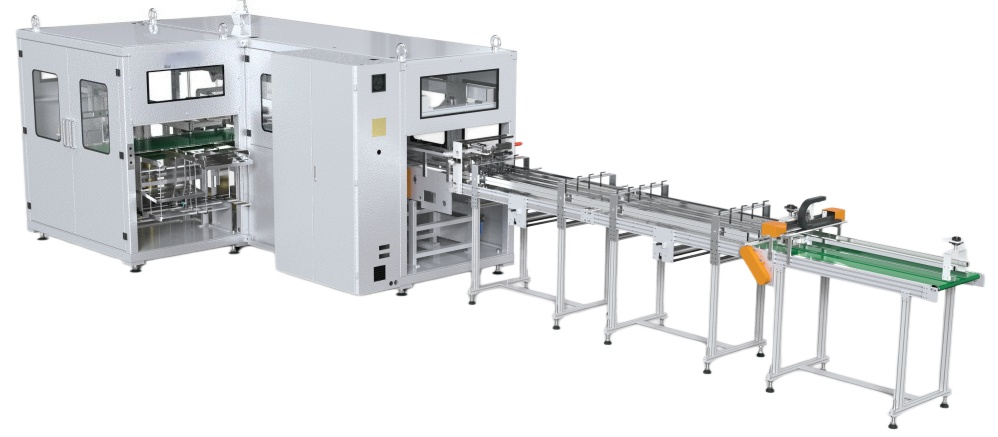

1. DX20J Fully Automatic Toilet Paper Bundling Package Machine
Advantages and Features
· Servo drive, touch screen, and PLC control system for convenient and quick parameter setting.
· Fully automated completion of feeding, sorting, bag opening, packing, corner insertion, and sealing.
· Central negative pressure management mode effectively reduces energy consumption.
· Bag-opening detection and protection function: automatic bag rejection if opening fails, proceeding to the next bag.
· Free and rapid electric conversion between various packaging specifications and sizes.
Technical Specifications
Item | Specification |
Model | DX20J |
Overall dimensions (L×W×H) | 3100mm × 1800mm × 1730mm |
Power supply | 380V/50Hz, 60Hz universal (3-phase 4-wire + ground) |
Control system brand | KONEST |
Drive system brand | VIETCH |
Machine color | White |
Air source requirement | Min. pressure 0.6MPa, flow rate 3m³/h |
Sealing method | Upper and lower constant temperature heating |
Total servo motor power | Approx. 9 kW (calculated from motor list) |
Packaging material | PE, APP pre-made bags (double-side heat sealing) |

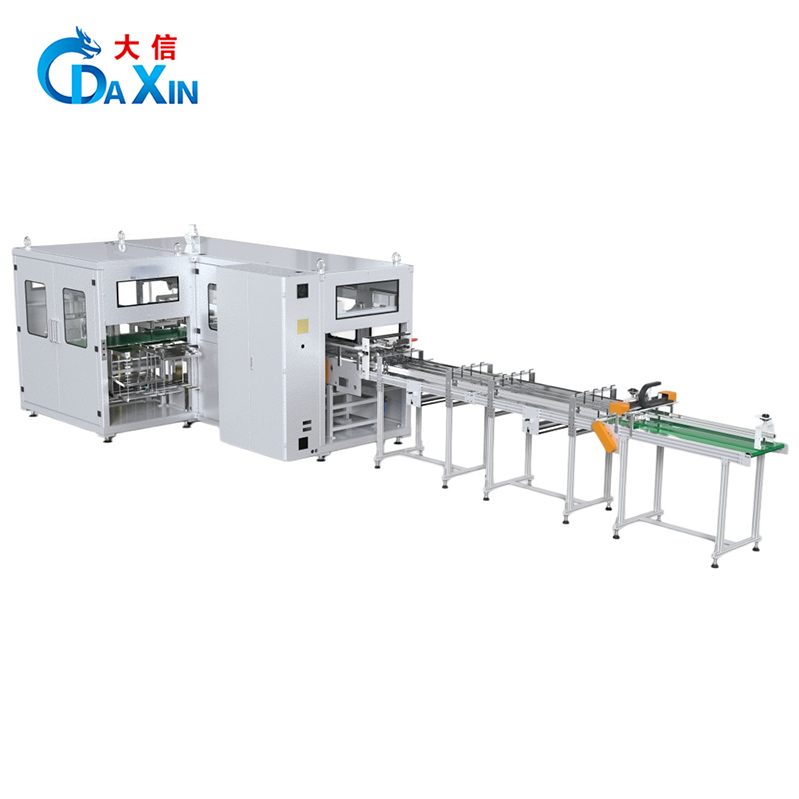

Automatic Kitchen Towel / Toilet Paper Bundling Wrapping Machine (ENVELOPE TYPE2-32 ROLLS/BAG)
Machine Name | Automatic Kitchen Towel/Toilet Paper Wrapping Machine |
Wrapping Speed | 1~60 Packs/Min (It depends on the packing quantity) |
Voltage | 380V/50Hz ( 3phase / 4 lines) |
Air Pressure | 0.5~0.8 MPA（Offered by buyer） |
Total Power | About 30~60 KW |
Feeding Way | Automatic |

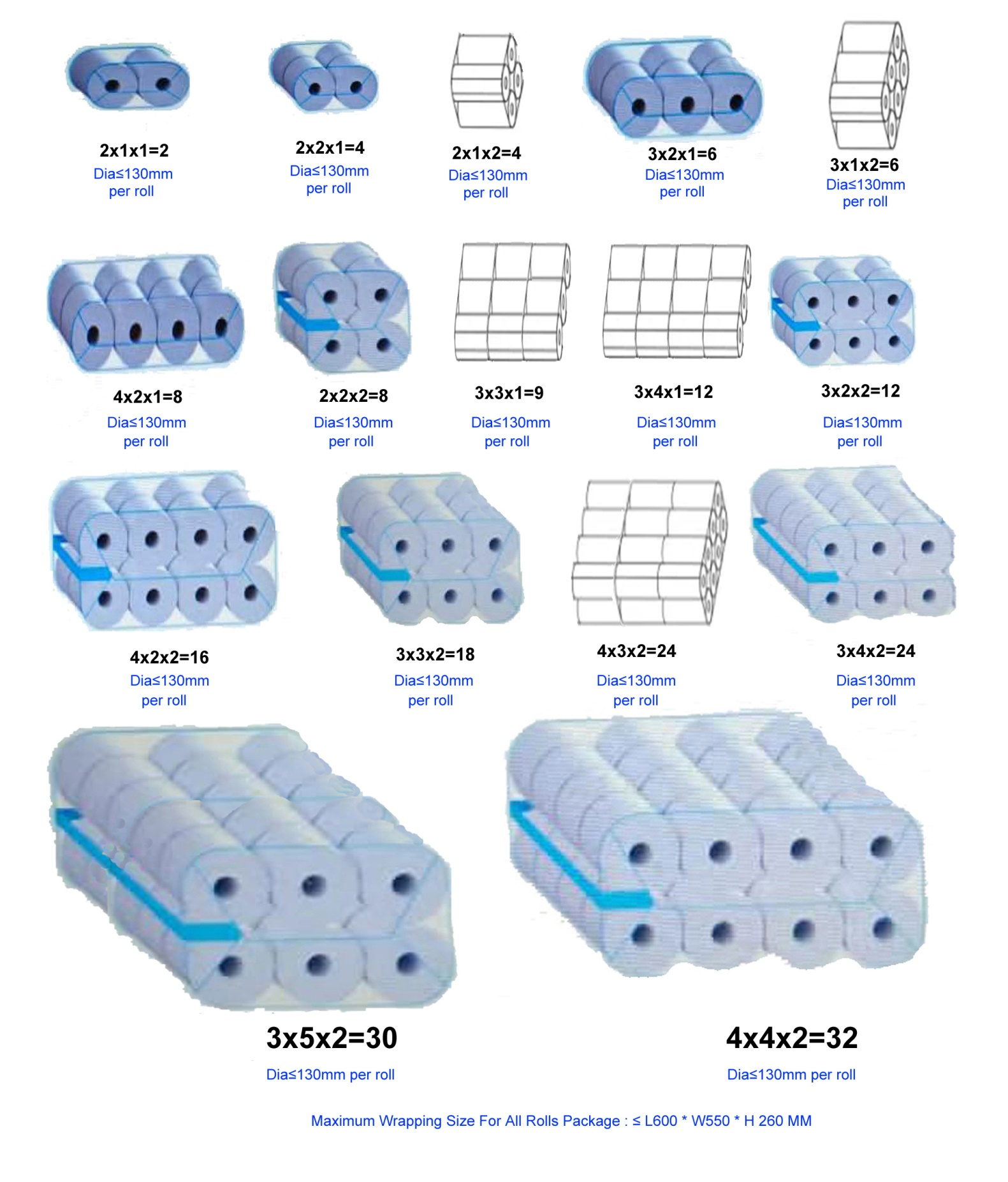

Kitchen Towel/Toilet Paper Application | 2~4 Lanes ; 1~2 Layers |
Wrapping Size Range | L （90-600) * W (90-550) * H (90-260) mm |
Wrapping Material | OPP / CPP / PE |
Wrapping Material Specification | 20~40 Microns |
Machine Weight | About 8000kg |
Machine Size | About L12600*W4600*H2200 mm |
Machine Parameters

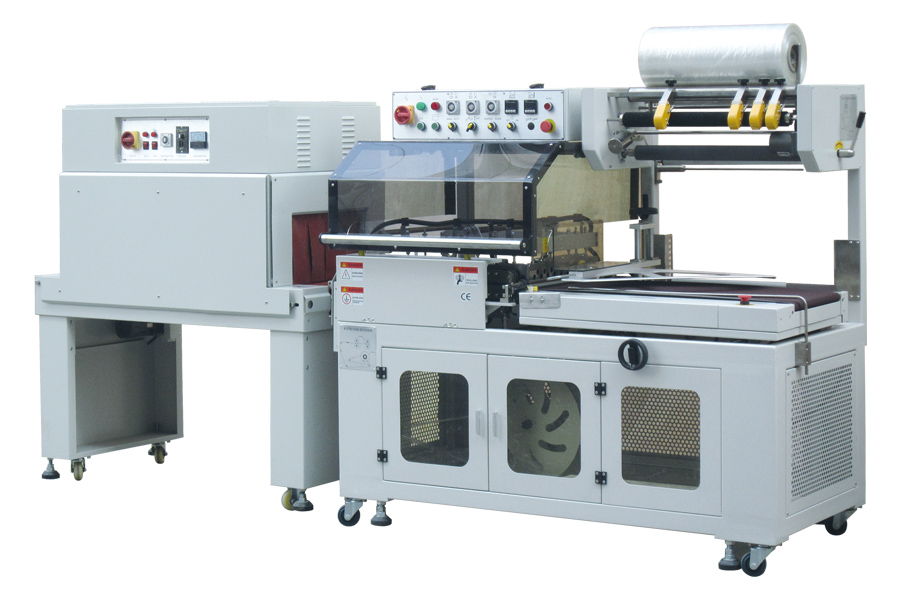

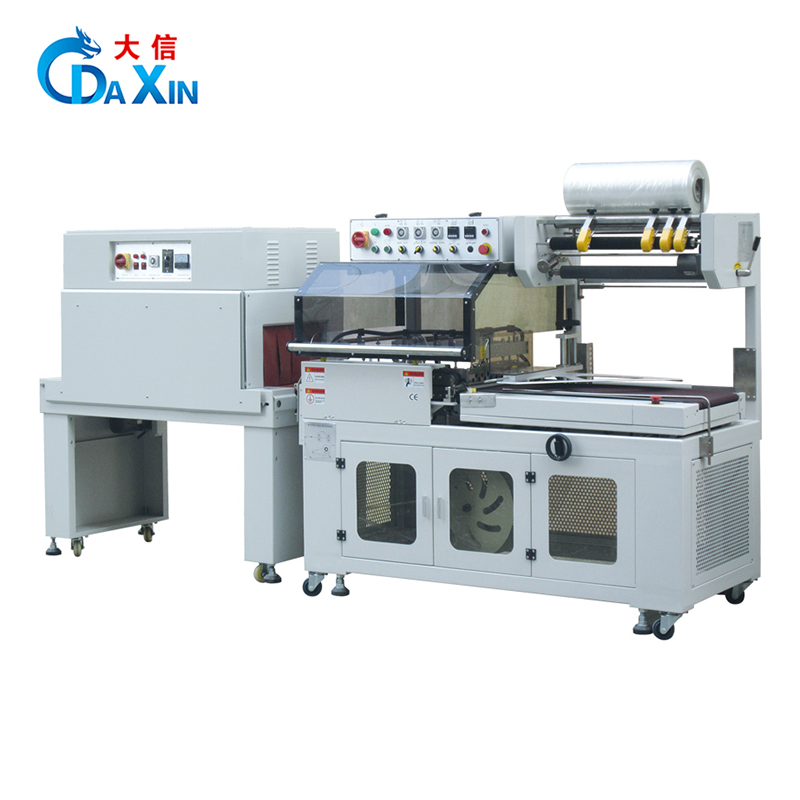

Fully automatic maxi roll paper Single heat shrinking machine
Maxi Roll Paper Temperature constant shrinking package machine | ||
Item | Detail | |
Heating system | insulation layer | Made of high-temperature resistant rock wool, it has a low surface temperature during operation, reducing heat loss |
Temperature control | Taiwan “ANV” temperature control meter and emported thermo sensor，0-220`C | |
Delivery system | Motor | Beijing ”VTV” motor，Gear box |
Speeder | Beijing”VTV”，Ensure delivery stable | |
The specially designed air duct system ensures even product,heating, , while the high-power fan motor guarantees uniform hot air distribution within the shrinking oven. | ||
Inner plate | Adoped galvanized plate hydraulic operation | |
Shirnking stove size | L1200*W450*H250mm | |
Power supply | 380V/50Hz 10KW | |
Mechanical size | L1300*W715*H1455mm | |
